BASIC ELECTRONICSBasic electronics - comprises the minimal "electronics components" that make up a part of everyday electronics equipment. These electronic components include resistors, transistors, capacitors, diodes, inductors and transformers.
Powered by a battery, they are designed to work under certain physics laws and principles. Basic electronics also concerns the measurement of voltage, current (electron flow) and resistance in the assembled working "circuit."
I PICK IT!!
“SUPER HETERODYNE RECIEVER”
Tools and Materials Needed:
1.AM Kit
2.Soldering Iron
3.Soldering Led
4.Wire
5.Bolts and knots
6.Batter Board
7.Wood
8.Power Supply Kit
9.Speaker (4ohms)
10.Screw Driver
11.Cutter
12.Hacksaw
13.Cover
14.Nail
15.Cord
Procedures:
1.Prepare all the tools and materials needed.
2.Start first your work by, assembling the two kits, respectively the AM Receiver
Kit and Power Supply Kit.
3.Use soldering led and soldering iron in assembling the Kits.
4.Make it sure that those parts on the Kits are place on their exact location, in order to avoid error in assembling.
5.After, assembling the two kits, check first the full wave power supply if it can carry the voltage of the am receiver.
6.At the same time, check your AM kit by the use of the multi-tester and voltage from the power supply.
7.Connect it to the speaker, if the speaker will oscillate, it means that you are successful on your work.
8.Start attaching it to the batter board prepared. And then your done!!!

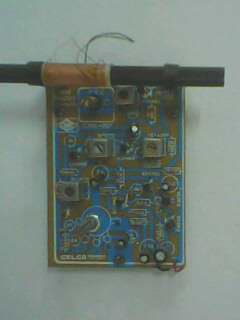

Finish Project"
Reasons why I pick this one as my Best Project?
Electronics was a challenging major base on my experience. At first, I find it boring during lectures because I can't relate to the discussion. But, when it reaches in the middle of learning I'm starting to get interested on the subject. This is the first time, I committed to escape from the class in order to buy the materials needed for our laboratory shop. Although, I didn't attend the class I was very thankful because our instructor did not check our attendance. To the project, it is very expensive and challenging, it requires a lot of effort, knowledge about the project and patience.
Documentations"
